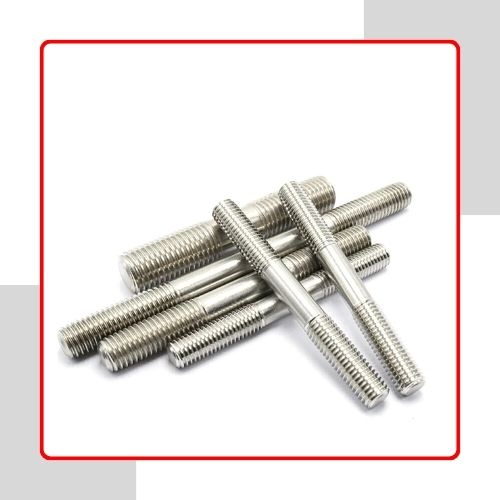

Stainless Steel 420 Stud Bolts are tough, corrosion-resistant fasteners made from martensitic stainless steel, which is known for its impressive hardness and durability. These stud bolts provide outstanding mechanical performance and are commonly found in demanding industrial settings where reliable fastening is a must. They boast excellent wear resistance, high tensile strength, and dependable service even in high-temperature and high-pressure situations. SS 420 Stud Bolts are resistant to corrosion, abrasion, and deformation, and their heat-treatable nature enhances their mechanical properties, making them perfect for critical structural and engineering tasks.
These bolts contain 12–14% Chromium, along with Manganese, Silicon, Carbon, and a bit of Nickel. The higher carbon content allows for heat treatment, which significantly boosts their strength and hardness. They achieve a tensile strength of 700–850 MPa, a yield strength of about 450 MPa, and can reach hardness levels up to 50 HRC when fully hardened. SS 420 offers moderate corrosion resistance in fresh water, steam, and mild chemicals. These stud bolts also maintain impressive strength at elevated temperatures and provide dimensional stability for long-lasting heavy-duty performance.
| Specifications | : | ASTM A /SA 193 / 194 |
| Dimensions | : | ASTM,DIN, BS,GB, IS and all International Standards |
| Length | : | 3 mm to 200 mm |
| Stud Bolts Size | : | M02 to M33 |
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 420 | 0.15 | 1.00 | 1.00 | 0.04 | 0.03 | 12.0-14.0 | – | – | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.8 g/cm3 | 1495 °C (2723 °F) | 690 MPa max | 414 MPa max | 15 % |
Stainless Steel 420 Stud Bolts are widely utilized in applications that demand strong, wear-resistant, and corrosion-resistant fasteners. You’ll find them in pumps, valves, turbine parts, petrochemical components, marine environments, and hydraulic systems. They are frequently used in oil and gas plants, chemical processing facilities, power generation, automotive industries, and heavy machinery manufacturing. In the medical field, they are employed for surgical and precision instruments due to their hardness and durability. Additionally, SS 420 Stud Bolts are ideal for high-temperature assemblies, pressure vessels, construction hardware, and defense equipment that require reliable fastening integrity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
