As one of the leading manufacturers and suppliers located in Dubai, UAE, Majid Fasteners provides customers with the largest selection of the highest quality fasteners. Our products include Super Duplex Steel S32760 bolts which are highly resistant to corrosion, been engineered specifically to withstand extreme loads, and to have an extensive and maintainable life expectancy. These bolts will meet any offshore, marine, petrochemical and industrial application needs. To provide our customers with the best possible assurance of product quality and reliability, we employ highly detailed manufacturing processes and a strict level of quality control. Majid Fasteners has built its reputation as a trusted source of high-performing fastening solutions, due to our commitment to providing Competitive Prices, Expedited Shipping Service and a Customer First approach to supporting customers in the UAE and abroad.
The balance of the materials used in manufacturing the Super Duplex Steel S32760 Bolts provides the properties of a high degree of Corrosion resistance with excellent Mechanical strength. The combination of the duplex austenite-ferrite microstructure and very high levels of nitrogen produces passivation effects on the surfaces of Super Duplex Steel S32760 Bolts which produce a long life under aggressive and corrosive atmospheres. The yield strength of S32760 is approximately 550 MPa with a tensile strength of approximately 800- 1000 MPa. Super Duplex Steel S32760 Bolts are very resistant to Pitting, Crevice and Stress Corrosion Cracking even in Chloride-rich and aggressive environments. Super Duplex Steel S32760 Bolts have High Toughness, Long Life, and the Ability to Support Heavy Loads, making them Ideal for use in Marine, Offshore and Petrochemical Applications.
| Standard | ASTM A789 / ASME SA789 |
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Fasteners |
|
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production Process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |

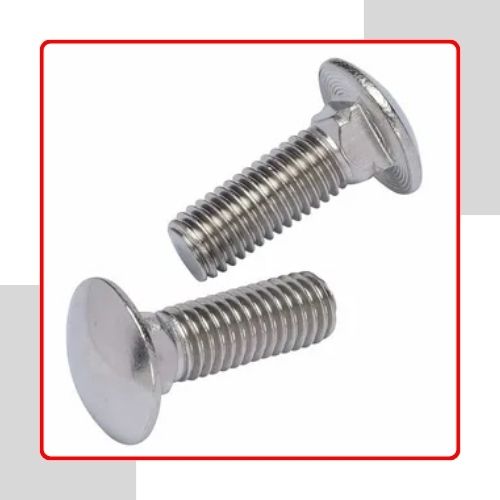

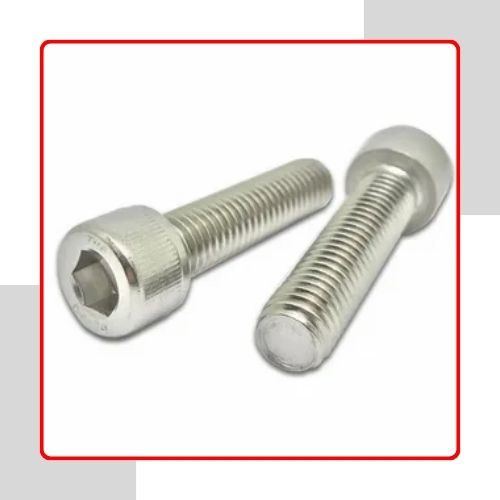

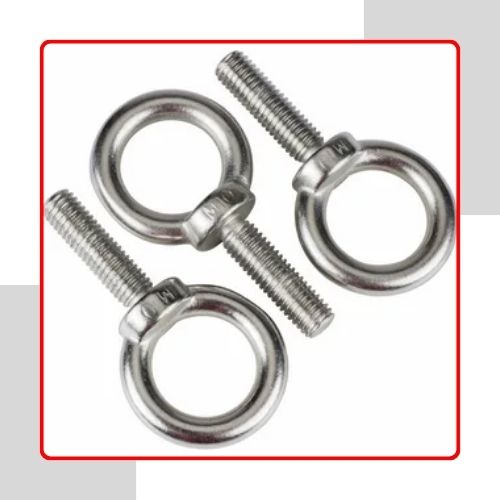

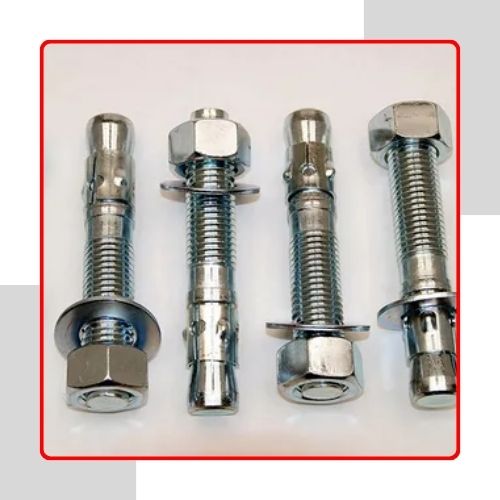

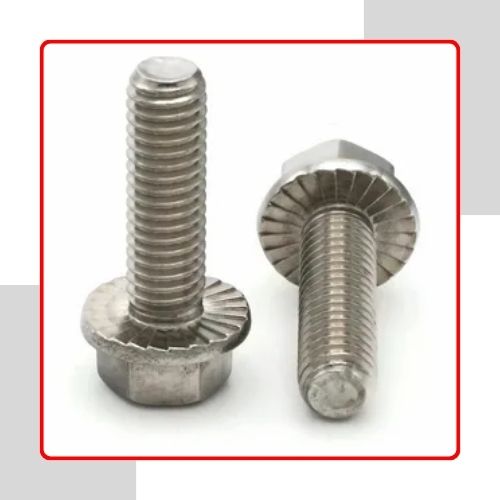

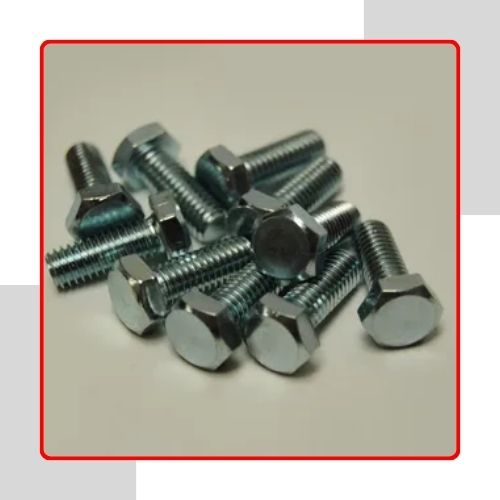

| Types | Bolts, Nuts, Stud Bolts, Washers, Threaded Rod, Anchor Fasteners, Eye Bolt, Stud, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, Hexagon Castle Nuts, Hexagon Domed Cap Bolts, Hexagon Thin Nuts etc. |
Super Duplex Steel S32760 bolts are used in many industries that demand both excellent corrosion resistance and high tensile strength. They can be found in offshore oil and gas production facilities, underwater machinery, desalination plants, and other seawater treatment plants, as well as throughout all those types of environments affected by corrosion caused by exposure to chlorides. Similarly, these bolts have applications in petrochemical and chemical production due to the high heat, pressure, and chemical exposure typical of those industries. Other industries that utilize this material include marine engineering, power plants, shipbuilding, heat exchangers, and, finally, high-stress structural assemblies. Super Duplex Steel S32760 offers a durable solution for even the toughest environments, allowing for cost-effective and dependable fastening solutions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
